Residential · Sahayogi Nagar Sector II, Dhanbad
Curved balconies. Shared rooms. Space to step outside.
Irregular plot. Boundary lengths follow the September 2024 drawing, confirmed by the owner. Plot area is being verified against these boundaries.
The design
An elongated plot makes room for an arrival court and garden towards the front. The ground-floor verandah extends the shared rooms towards this open space, while the side driveway and walkways connect the building with the rest of the site.
The portfolio plan brings living and dining together at the centre of the ground floor, with bedrooms, kitchen and supporting rooms around them. Above, bedrooms and a study gather around a shared hall. The second-floor proposal combines a gym or multipurpose hall with a three-bedroom unit and a broad open terrace.
Broad balcony bands turn around rounded corners and link the elevations. Recessed openings, verandahs and terraces give depth to the building edge. A patterned vertical screen provides a counterpoint to the long horizontal lines, while planted terraces are part of the proposed landscape.

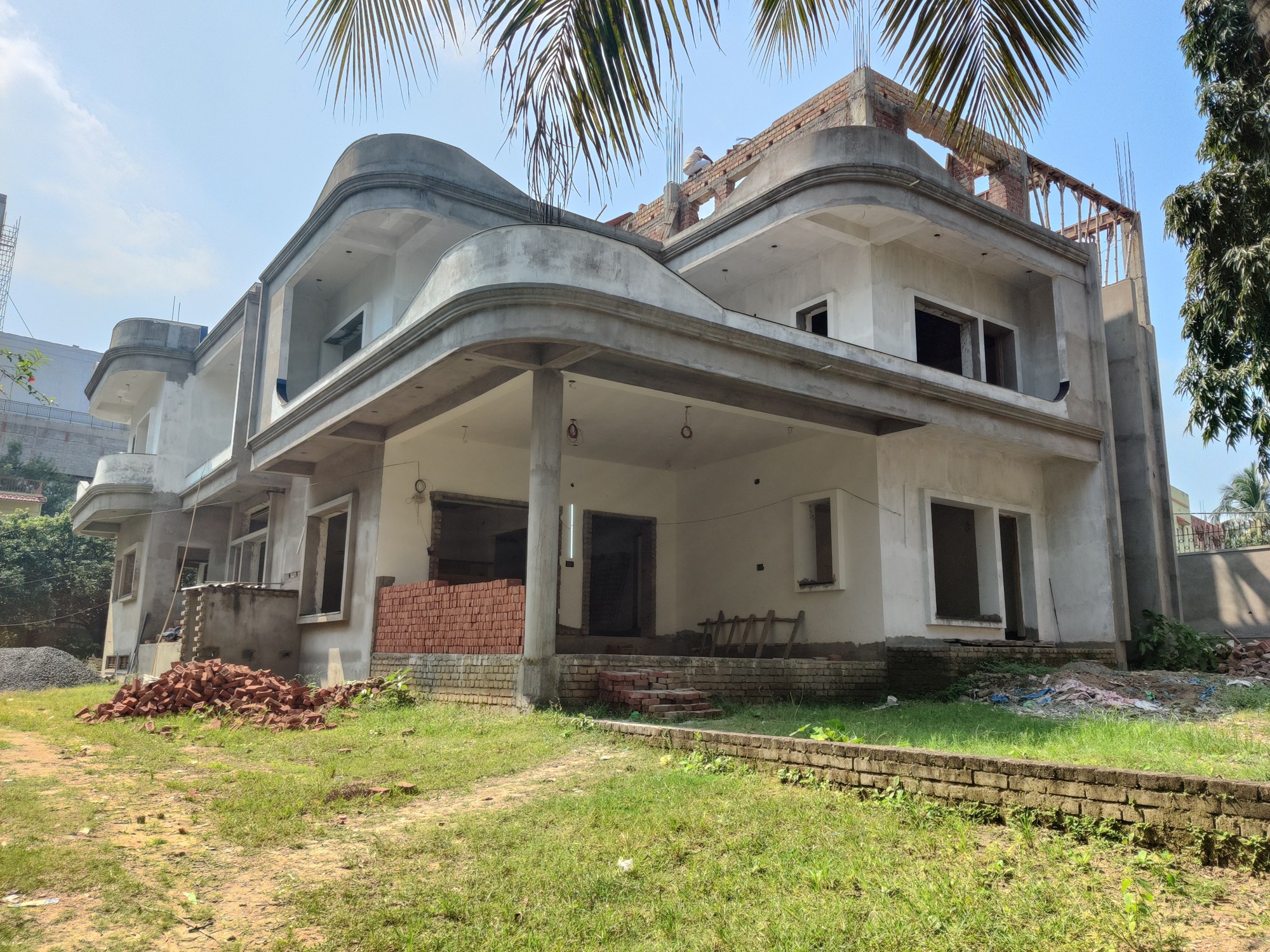

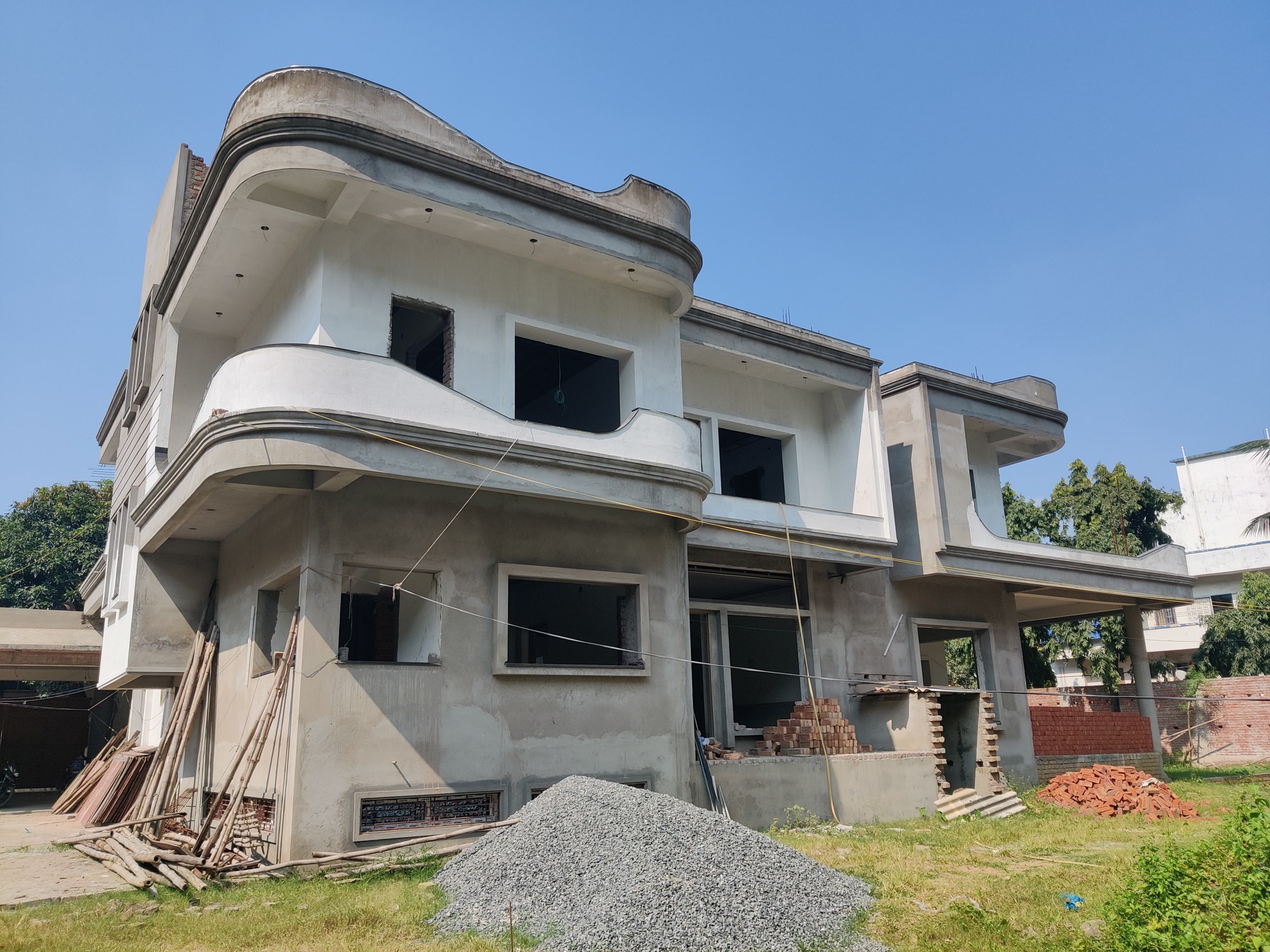

The site photographs from October 2026 show the curved balcony edges and principal volumes taking shape, with finishing work still underway. The drawings below present the curated portfolio scheme; later room and interior revisions are being developed as construction progresses.
Images & views

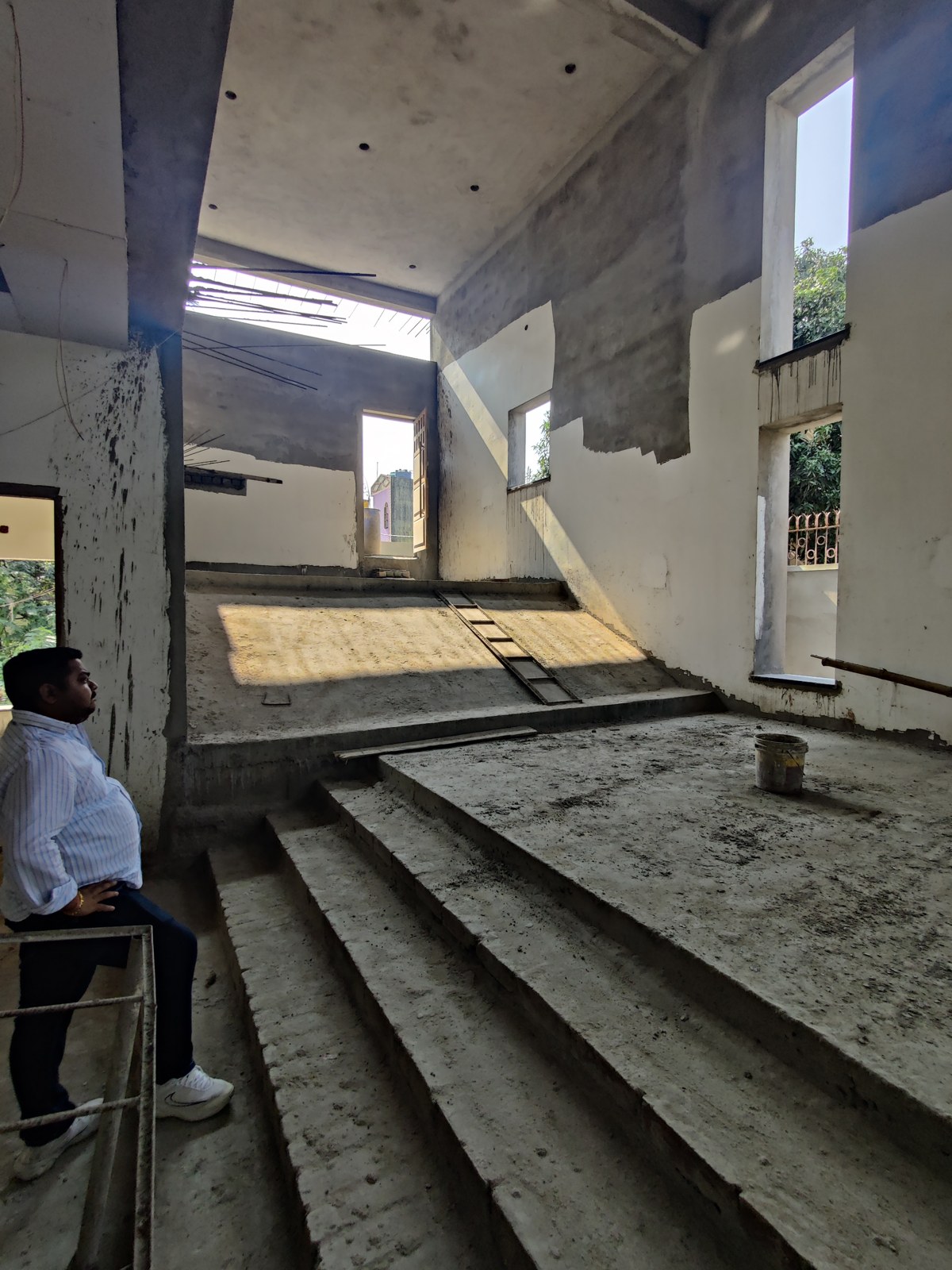

Day and night visualisations describe the proposed building. Photographs dated 24 October 2026 show its construction stage. Select an image to enlarge.
The architectural drawings

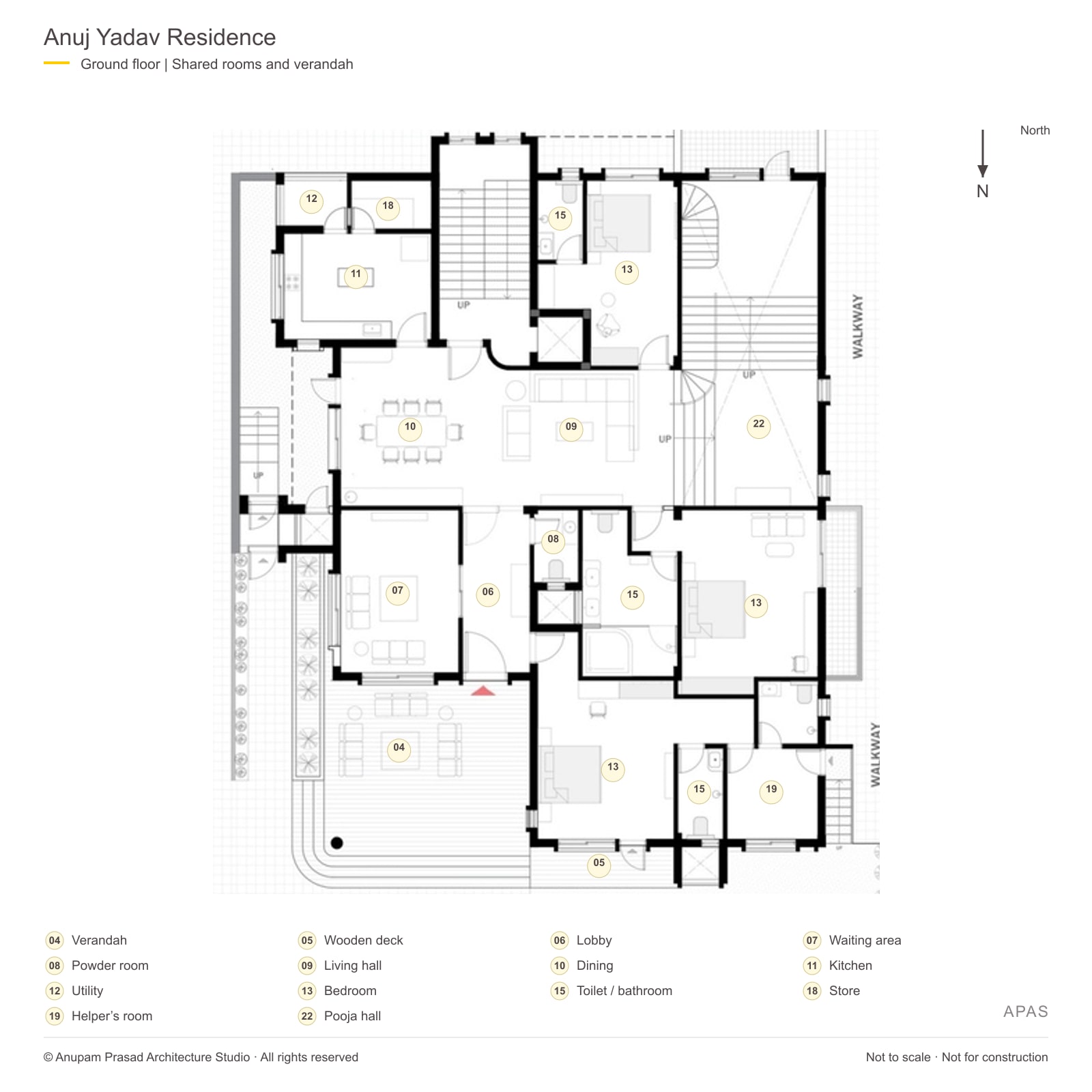

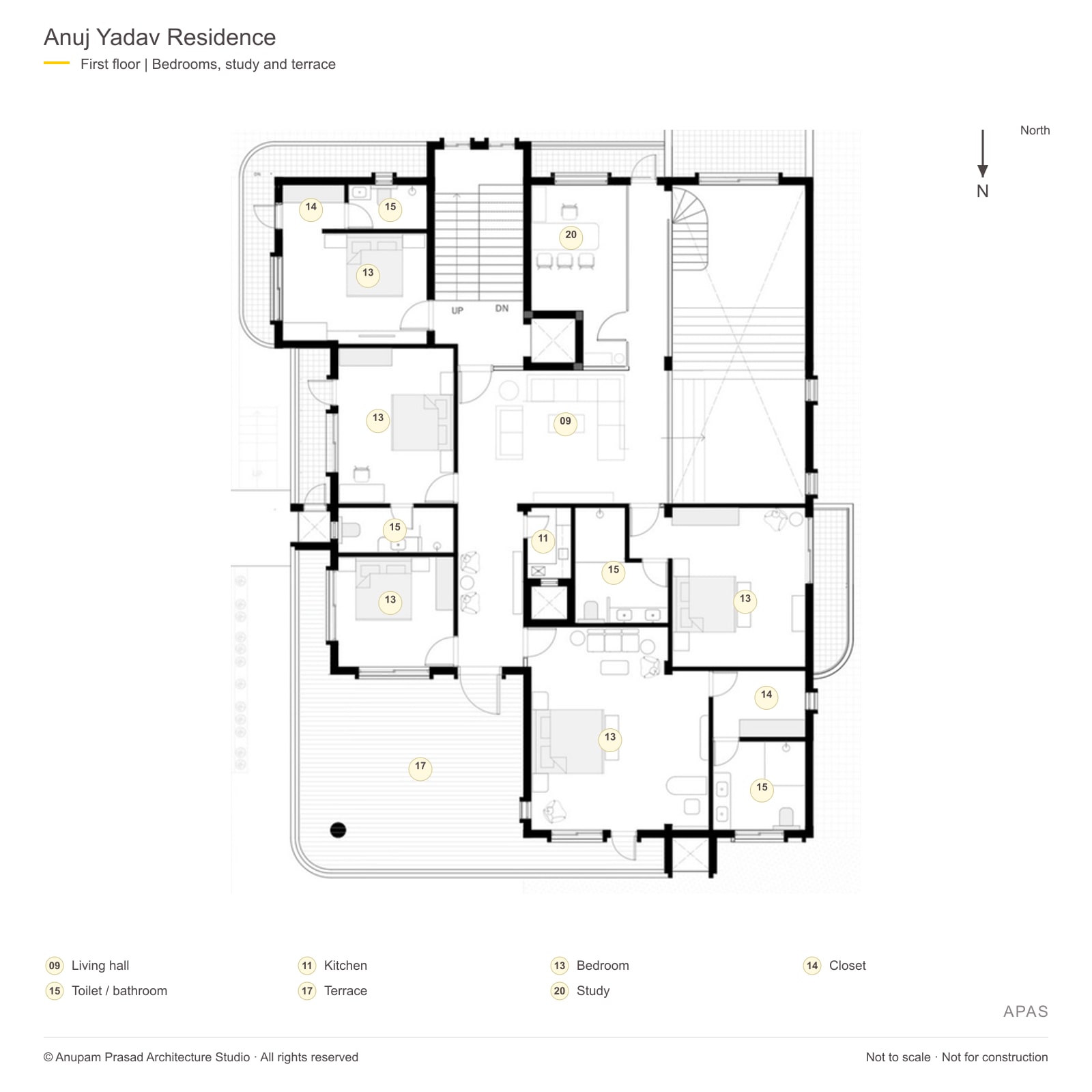

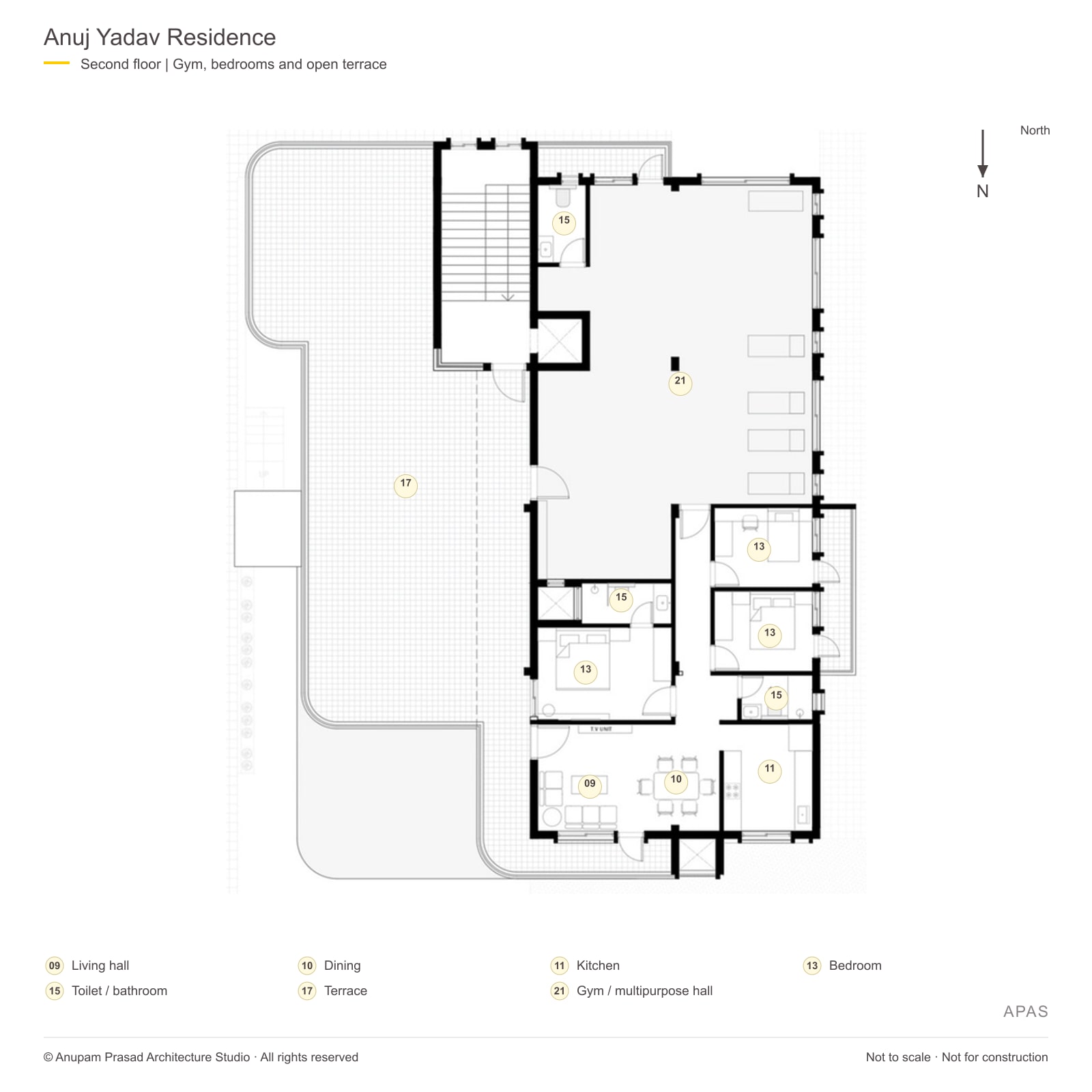

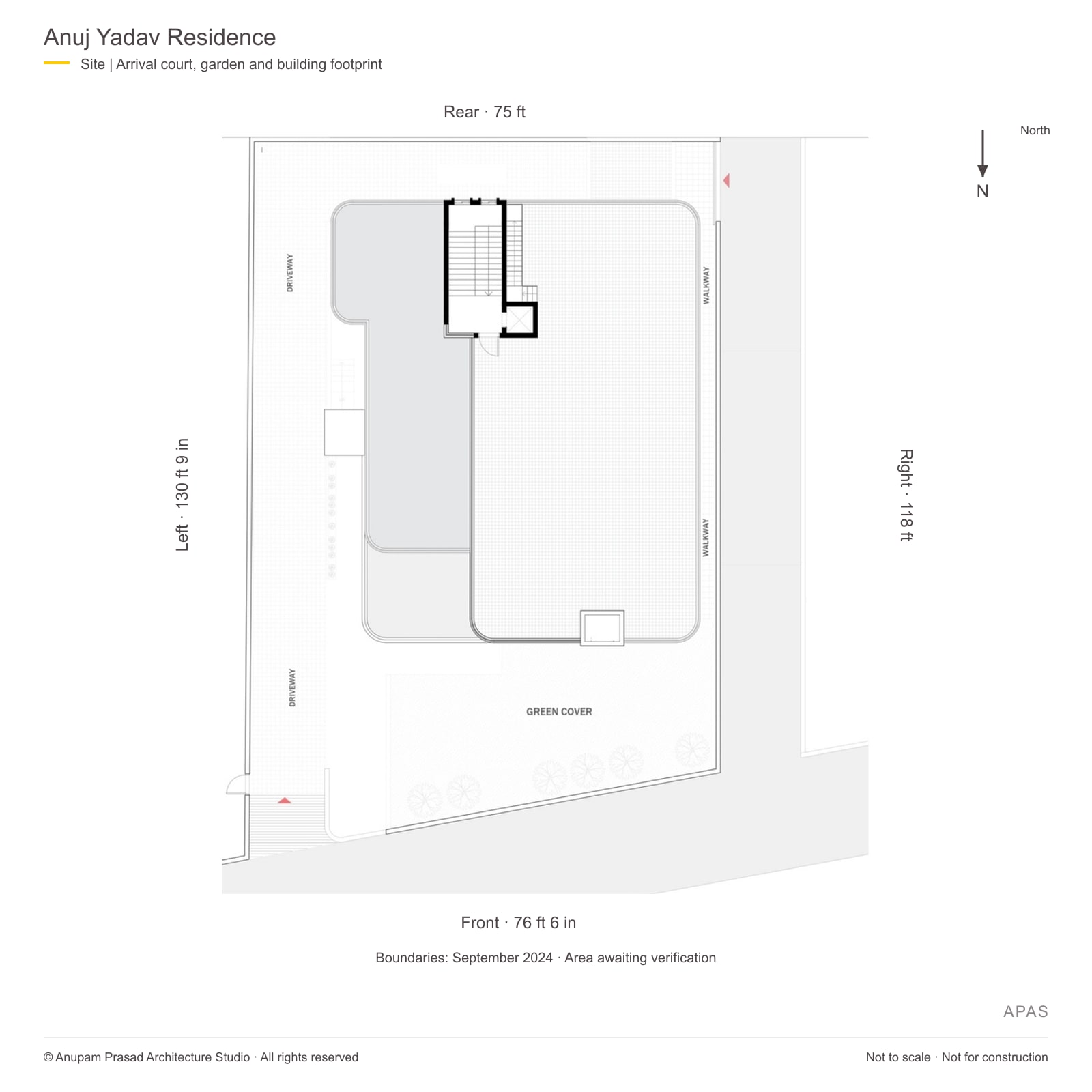

The site and three floor plans from the September 2026 portfolio explain the design. Room-use numbers follow the source drawings; north points down on these sheets. These are portfolio proposals, not a record of every later site revision.
Total built-up area · portfolio schemeApprox. 16,600 sq ft
| Space | Area |
|---|---|
| Plot | Awaiting verification against confirmed boundaries |
Project built-up area follows the September 2026 portfolio scheme, not an as-built measurement. Plot boundaries follow the owner-confirmed September 2024 drawing; plot area remains under verification.
Room and floor areas are not stated on this portfolio sheet. Available working drawings include layout changes, so their figures have not been transferred to this plan.
Room and floor areas are not stated on this portfolio sheet. Available working drawings include layout changes, so their figures have not been transferred to this plan.
Source floor total · including terrace, balconies and staircase4,794 sq ft
| Space | Area |
|---|---|
| 21Gym / multipurpose hall · source-stated area | 1,193 sq ft |
| Three-bedroom unit · source built-up area | 1,140 sq ft |
| 09Living and dining together · derived | Approx. 245 sq ft |
| 11Kitchen · derived | Approx. 120 sq ft |
| 13Bedroom at lower left · derived | Approx. 156.3 sq ft |
| 13Upper bedroom at right · derived | Approx. 101.8 sq ft |
| 13Lower bedroom at right · derived | Approx. 99 sq ft |
| 15Common toilet beside kitchen · derived | Approx. 45 sq ft |
| 15Toilet beside stair / gym · derived | Approx. 47.4 sq ft |
| Lift shaft · derived | Approx. 25 sq ft |
The matching Option 2 drawing states the floor total inclusive of outdoor terraces, balconies and stairs; it is not enclosed floor area. Its gym figure is called carpet area in the notes and BUA within the plan, so that measurement basis remains unconfirmed. Derived quantities use clear rectangular room dimensions. The room figures sit within the unit/floor totals and must not be added to them. Separate terrace, stair and remaining bathroom areas are not verified.
Source geometry and north orientation retained. Room and construction dimension strings, scale bars and technical details omitted; discreet APAS credits sit in the margins. Available areas appear below the relevant drawing. Not to scale or for construction.
Our involvement
Architectural design.
Architectural design: Anupam Prasad Architecture Studio.
Design visualisations and construction photographs: APAS project archive. Visualisations illustrate proposed finishes and landscaping; site photographs show work in progress on 24 October 2026.
The neighbourhood
Sahayogi Nagar Sector II, Dhanbad
Explore the wider neighbourhood. The private residence is not marked.
Open in Google Maps ↗Satellite imagery is provided by Google Maps and its imagery partners. It may predate construction and does not represent current project progress or surveyed boundaries.
