Chandan Kumar Residence

Making a long, narrow site work for family life.

Plot area
3,031 sq ft · stated in the design drawings
Plot form
Long, irregular plot

Plot and floor areas follow the design drawings.

Daylight design visualisation of the proposed arched frontage at Chandan Kumar Residence
Design visualisation · Ground floor constructed and occupied
Location
Gomoh, Jharkhand
Design records
2023–2024
Ground floor
Constructed and occupied
Published upper floors
Proposed design studies

The design

A sequence of spaces within a narrow plot.

Working with the depth of the site

The long plot calls for rooms and circulation to be arranged in sequence. A front parking court leads to a sit-out and foyer, followed by shared family space and accommodation extending towards the rear. The plan follows the irregular site alignment.

Everyday rooms and circulation

The February 2024 ground-floor design groups the hall, kitchen and puja space within the deeper part of the house. Bedroom accommodation is arranged along the length, connected by a passage.

Space for later accommodation

The upper-floor studies explore a phased approach to later accommodation around the front stair. The February drawing presents a first phase with a room, toilet and open terrace, followed by a fuller proposal with a shared lobby and separate entrances.

Giving the frontage an identity

A February 2024 design-model view develops the narrow frontage with arched upper openings, a balcony and contrasting vertical and horizontal elements. The proposed upper facade is distinct from the occupied ground-floor phase. Finished photographs will allow the completed work to be documented separately.

Images & views

The proposed frontage

Daylight and evening design visualisations of the arched facade. Completed-building photography is pending.

Design visualisationDay design visualisation of the proposed arched facade and entrance court
Daylight design visualisation · Proposed arched frontage. Completed-building photography is pending.
Design visualisationEvening design visualisation of the proposed arched facade and entrance court
Evening design visualisation · Proposed arched frontage. Completed-building photography is pending.

The architectural drawings

The occupied phase and proposals above.

The February 2024 ground-floor design and two upper-floor phase studies are shown separately. Plans are rotated for readability; the verified source north consequently points up. Numbered keys identify room uses.

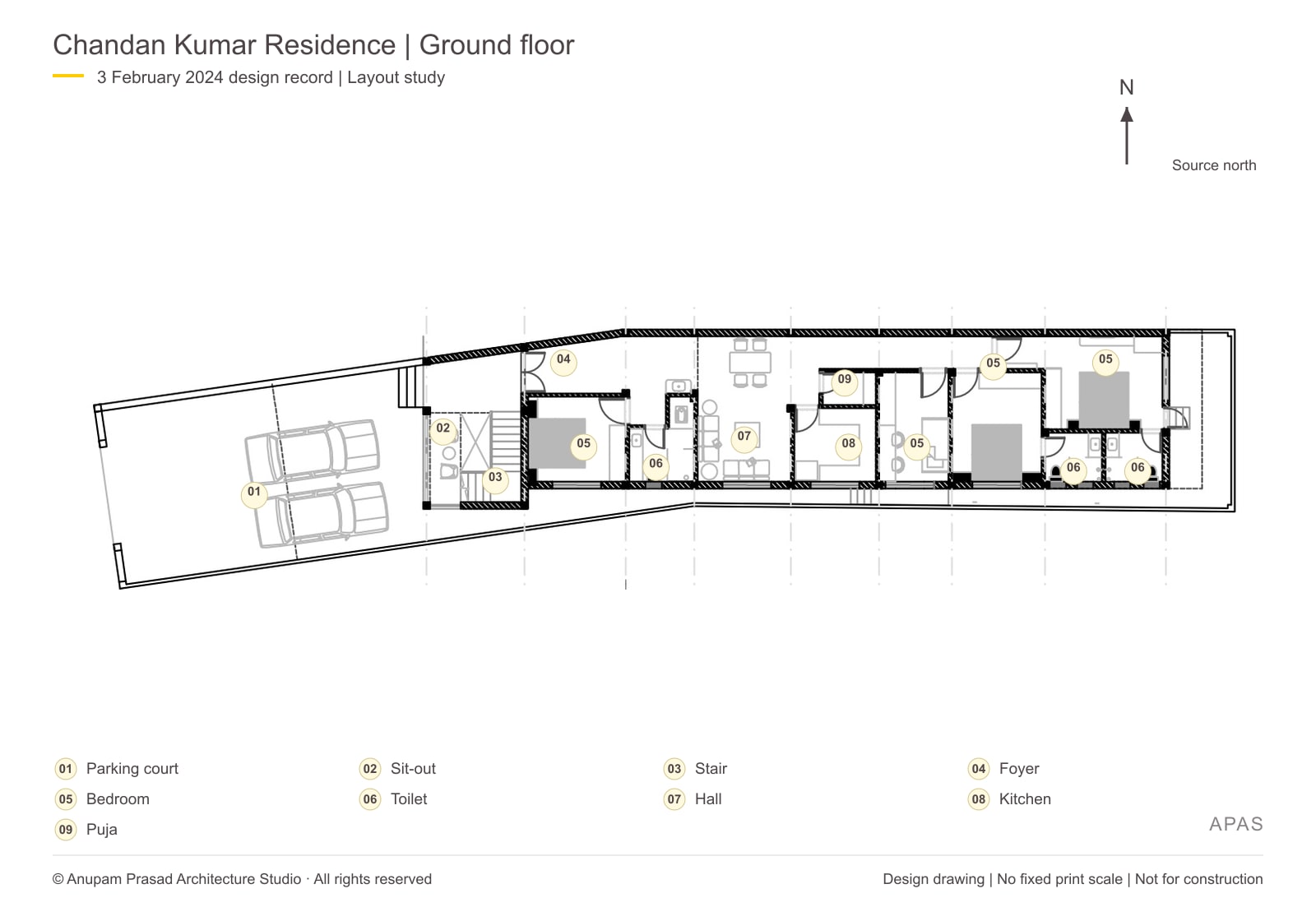

Ground-floor design drawingGround-floor design · February 2024. Parking, entrance spaces, hall, kitchen, puja and bedroom accommodation along the depth of the site. North points up after rotation.
Ground-floor design · February 2024. Parking, entrance spaces, hall, kitchen, puja and bedroom accommodation along the depth of the site.
  • 01Parking court
  • 02Sit-out
  • 03Stair
  • 04Foyer
  • 05Bedroom
  • 06Toilet
  • 07Hall
  • 08Kitchen
  • 09Puja

Ground-floor built-up · design drawing1,719.81 sq ft

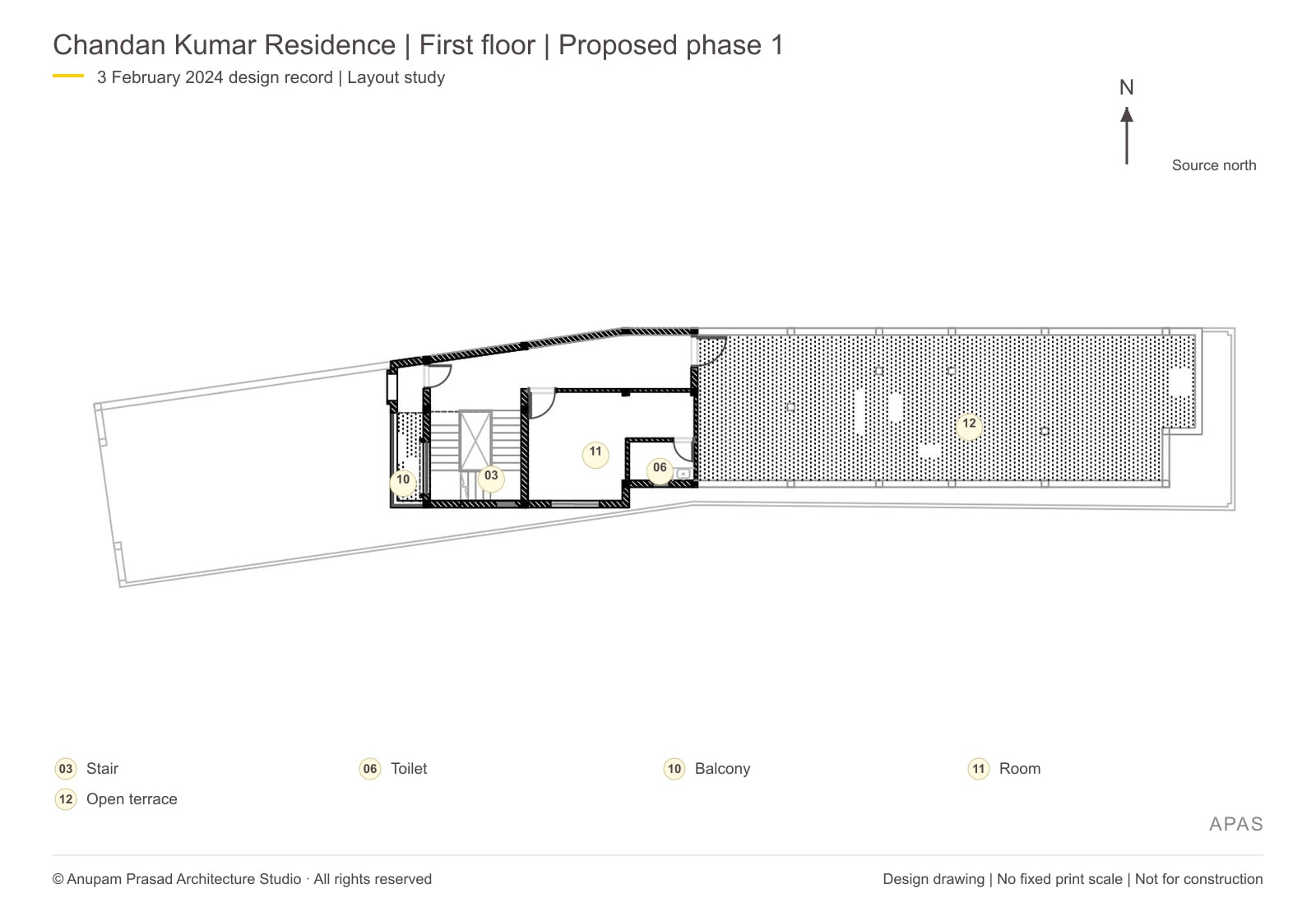

Upper-floor proposalUpper-floor study · Proposed phase 1: a room and toilet beside the front stair, with an open terrace beyond. North points up after rotation.
Upper-floor study · Proposed phase 1: a room and toilet beside the front stair, with an open terrace beyond.
  • 03Stair
  • 06Toilet
  • 10Balcony
  • 11Room
  • 12Open terrace

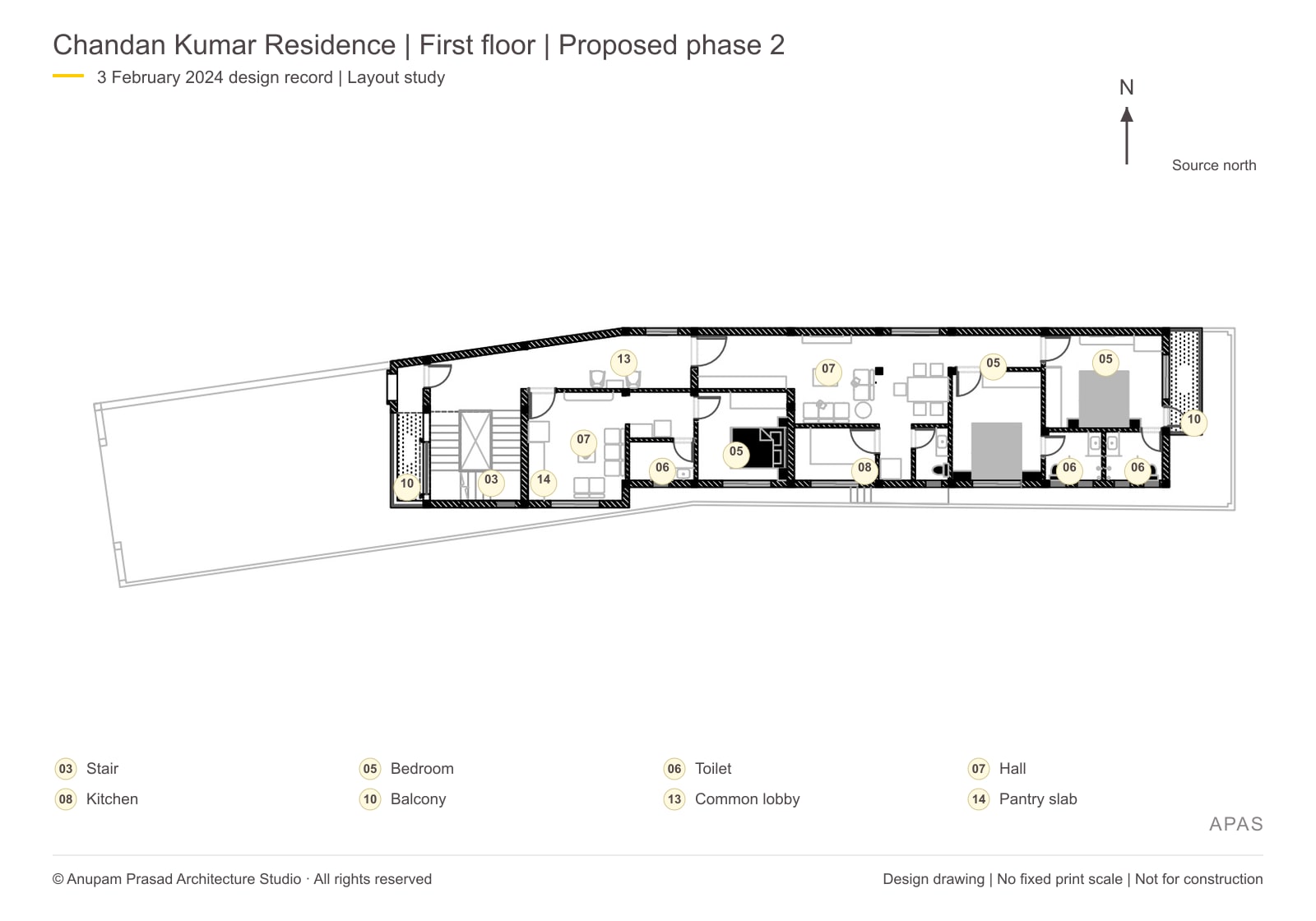

Upper-floor proposalUpper-floor study · Proposed phase 2: a fuller accommodation layout with a shared lobby and separate entrances. North points up after rotation.
Upper-floor study · Proposed phase 2: a fuller accommodation layout with a shared lobby and separate entrances.
  • 03Stair
  • 05Bedroom
  • 06Toilet
  • 07Hall
  • 08Kitchen
  • 10Balcony
  • 13Common lobby
  • 14Pantry slab

First-floor built-up · proposed layout1,930 sq ft

Portfolio reproductions of design drawings, with source geometry retained and technical annotations omitted. Ground-floor occupation was confirmed by the owner in October 2026. The plans do not certify as-built dimensions; upper-floor phase labels describe the archived proposals. No fixed print scale. Not for construction.

Our involvement

Design scope
& project credits.

Architectural planning and facade design studies by APAS. The ground floor is constructed and occupied, as confirmed by the owner in October 2026. This case study presents design drawings and visualisations; finished photography is pending.
